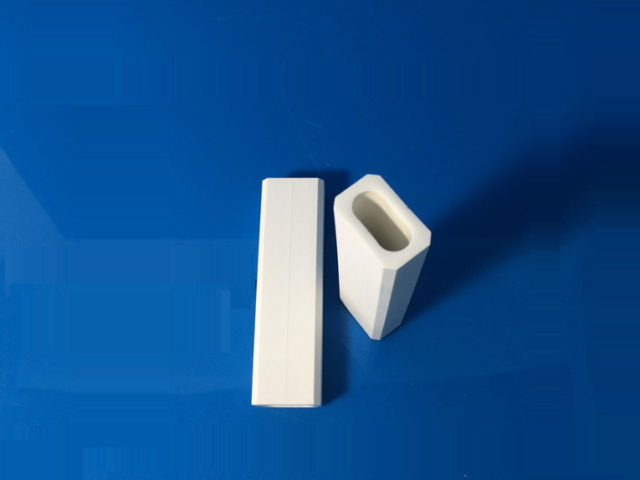

Ceramic Reflector Technology Data:
Material: 96% Al2O3
Specifications:
Color: White
Size: 16(0,+0.3)*26(0,-0.3)*92(0,-0.5)mm
Bulk density (fired): 3.1 Mg/m3
Porosity: 22%
97% reflectance efficiency at 600-1000nm
Reflectance efficiency exceeds 95% across the wavelength range 400-1200nm (see curve)
Application:
1. Intense pulsed light systems
2. Solid-state lasers
3. Ceramics for Excimer Lasers
4. Ceramics for CO2 Lasers
5. Ceramics for Ion Lasers
